GS-Wave Series

WAV-TWPOD

Omnidirectional super tweeter pod

Features

  • Omnidirectional super tweeter pod to reproduce ultra-high frequencies from overhead.
  • Expands the depth and space of the system and gives the impression of a larger room.
WAV-TWPOD Jump to
Specifications
Hardware
Enclosure Type
Omnidirectional tweeter array
Hardware
Enclosure
18 mm (0.7-inch) birch plywood
Hardware
Finish
Impact-resistant, Black textured polyurethane
System data
Frequency response
5 kHz to 20 kHz
System data
Sensitivity (1W/1m)
100 dB
System data
Nominal Impedance
8 Ω
Loudspeaker data
Power Handling
100 W RMS, 200 W Program
Loudspeaker data
Power Handling AES
120 dB cont., 126 dB peak
Loudspeaker data
Maximum SPL
Omnidirectional
Loudspeaker data
Dispersion
4 × 1.5 inch (38 mm) exit compression bullet tweeters
Loudspeaker data
Crossover
1 × Neutrik SpeakON™ NL4
Dimensions / Weight
Dimensions ( W x H x D)
226 × 201 × 226 mm
(8.9 × 7.9 × 8.9-inch) not including eyebolts
Dimensions / Weight
Weight
10 kg (22 lbs)
Downloads

Brochure
PDF
4.06 Mb

Images
ZIP
2.62 Mb

Technical drawing
DXF
0.6 Mb

User manual
PDF
1.38 Mb

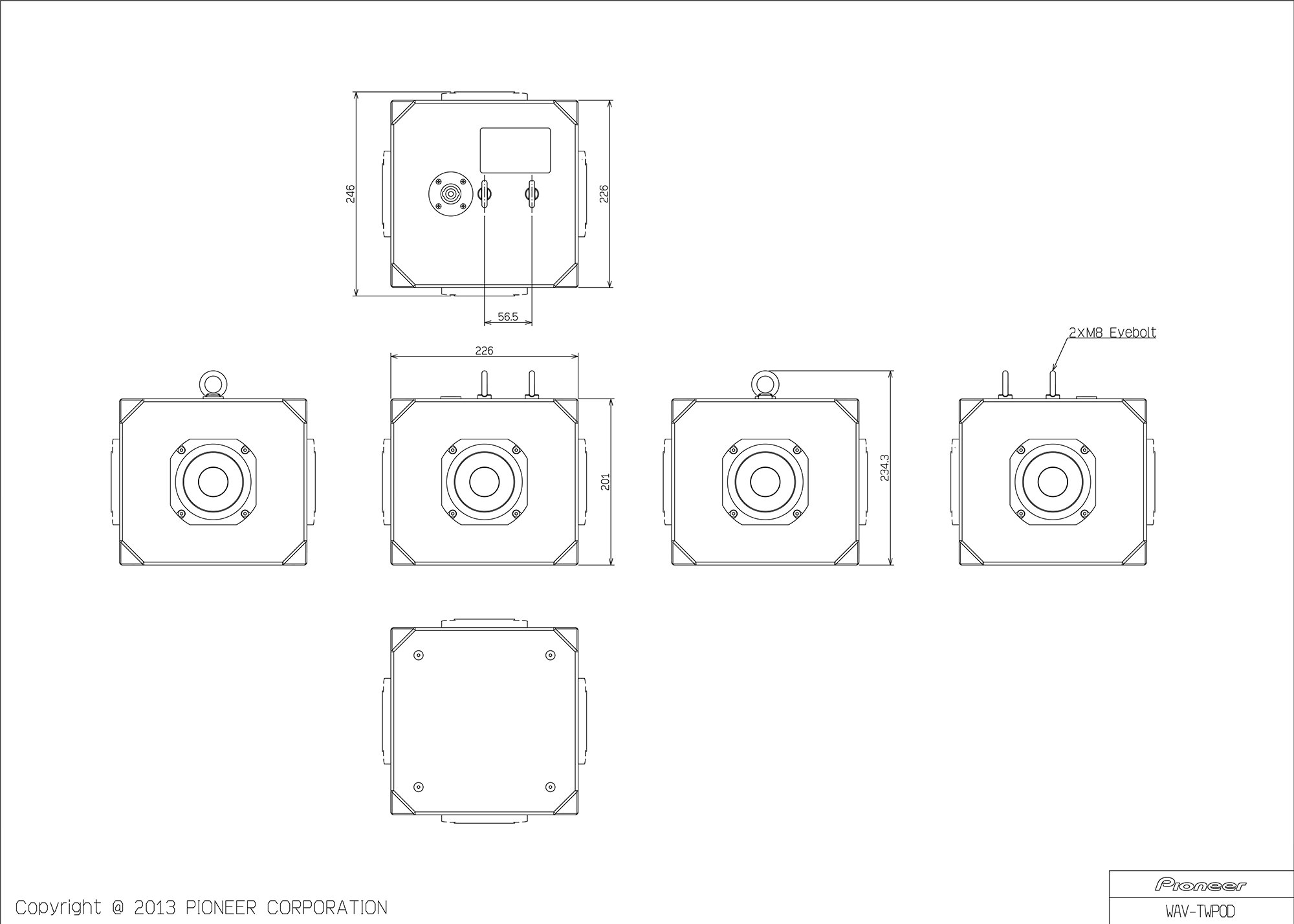

Technical drawing
Technical drawing (DXF : 709 Kbytes)
