GS-Wave Series

WAV-SUB

Multi-fold hyperbolic horn subwoofer

Features

  • Hyperbolic subwoofer with 18-inch LF drivers.
  • 3-metre folded horn that efficiently amplifies the sound from the drivers to deliver a robust, high-impact sensory bass with minimal distortion.
  • Highly rigid 18 mm thick (0.7-inch thick) birch plywood cabinet structure.
WAV-SUB Jump to
Specifications
Hardware
Enclosure Type
Hyperbolic folded horn subwoofer
Hardware
Enclosure
18 mm (0.7-inch) Lower case on birch plywood
Hardware
Finish
Impact-resistant, Black textured polyurethane
System data
Frequency response
35 Hz to 150 Hz
System data
Sensitivity (1W/1m)
108 dB (half space)
System data
Nominal Impedance
2 × 8 Ω
Loudspeaker data
Power Handling
1600 W RMS, 3200 W Program
Loudspeaker data
Power Handling AES
140 dB cont., 146 dB peak (half space)
Loudspeaker data
Power Handling (RMS/Program)
-
Loudspeaker data
Transformer taps
2 × 18-inch (457 mm) LF drivers
Loudspeaker data
Dispersion
1 × Neutrik SpeakON™ NL4
Dimensions / Weight
Dimensions ( W x H x D)
1549 × 1083 × 919 mm
(61 × 42.6 × 36.2-inch)
Dimensions / Weight
Weight
213 kg (469.7 lbs)
Downloads

Brochure
PDF
4.06 Mb

Images
ZIP
4.32 Mb

Specifications sheet
PDF
0.91 Mb

Technical drawing
DXF
0.44 Mb

User manual
PDF
1.38 Mb

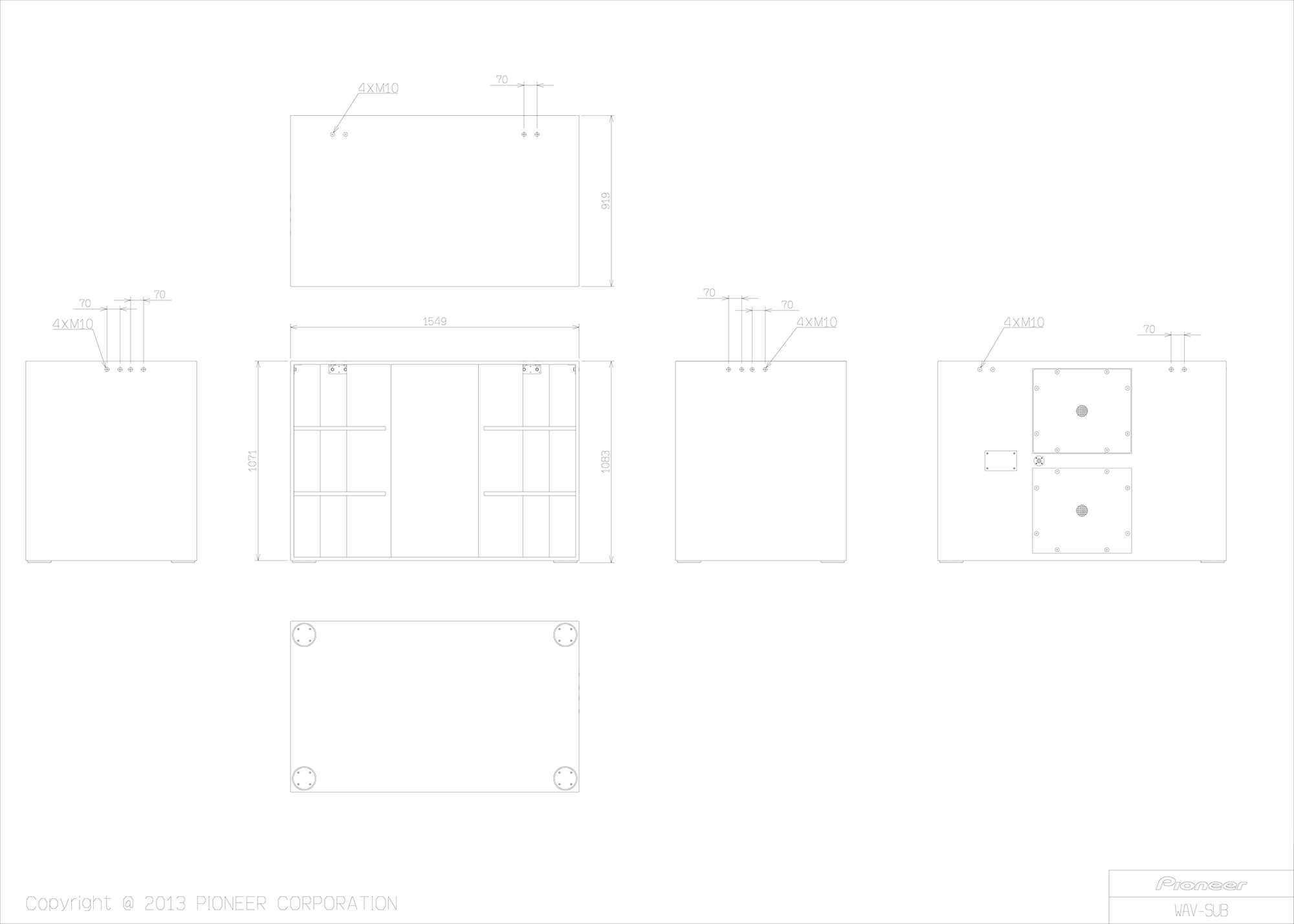

Technical drawing
Technical drawing (DXF : 512 Kbytes)
