XY Series

XY-215S

15インチx2 クオシバンドパスサブウーファー

特長

15インチLFドライバを2発搭載したバンドパスタイプのサブウーファーです。
非常に速い応答性を持ちつつも42Hzに達する深いベース音を提供し、Dance Musicに重要な芯のあるキックサウンドを力強く再生します。
狭い空間を二つのユニットで揺らす事で、効率良く空気振動を発生させ、放射効率を上げています。

XY-215S Jump to
Specifications
Hardware
Enclosure Type
Dual driver, quasi-bandpass subwoofer
Hardware
Rigging and Hardware
4 × flush handles,
2 × M20 polemount sockets for mid/high enclosures,
8 × rubber feet (bottom and left) and 4 ×mating recesses (top),
16 × M8 holes with pre-inserted bolts for 4 × castors on rear
Hardware
Grille
Hex punched steel
Hardware
Enclosure
18 mm (0.7-inch) birch plywood
Hardware
Finish
Impact-resistant, Black semi-matt textured
System data
Frequency response
42 Hz to 160 Hz
System data
Sensitivity (1W/1m)
102 dB (half space)
System data
Nominal Impedance
4 Ω
Loudspeaker data
Power Handling
800 W RMS, 1600 W Program
Loudspeaker data
Power Handling AES
131 dB cont., 137 dB peak (half space)
Loudspeaker data
Transformer taps
2 × 15 inch (380 mm) LF cone drivers
Loudspeaker data
Dispersion
2 × Neutrik SpeakON™ NL4
Dimensions / Weight
Dimensions ( W x H x D)
831 × 526 × 700 mm
(32.7 × 20.7 × 27.6-inch)
Dimensions / Weight
Weight
71 kg (156.6 lbs)
Other
Suggested Power Amplifier
Recommended : K3DSP
Minimum : K2DSP
Other
Accessories
2 x polemount socket cover
(-W model only)
Downloads

Brochure
PDF
4.06 Mb

EASE data
ZIP
10.66 Mb

Images
ZIP
3.17 Mb

Installation manual
PDF
9.4 Mb

Preset data for Powersoft
ZIP
0.77 Mb

Processor settings
PDF
0.54 Mb

Specifications sheet
PDF
1.65 Mb

Technical drawing
DXF
3.43 Mb

User manual (Chinese)
PDF
1.34 Mb

User manual (English)
PDF
1.51 Mb

User manual Errata
PDF
0.19 Mb

User manual Errata (中国語)
PDF
0.17 Mb

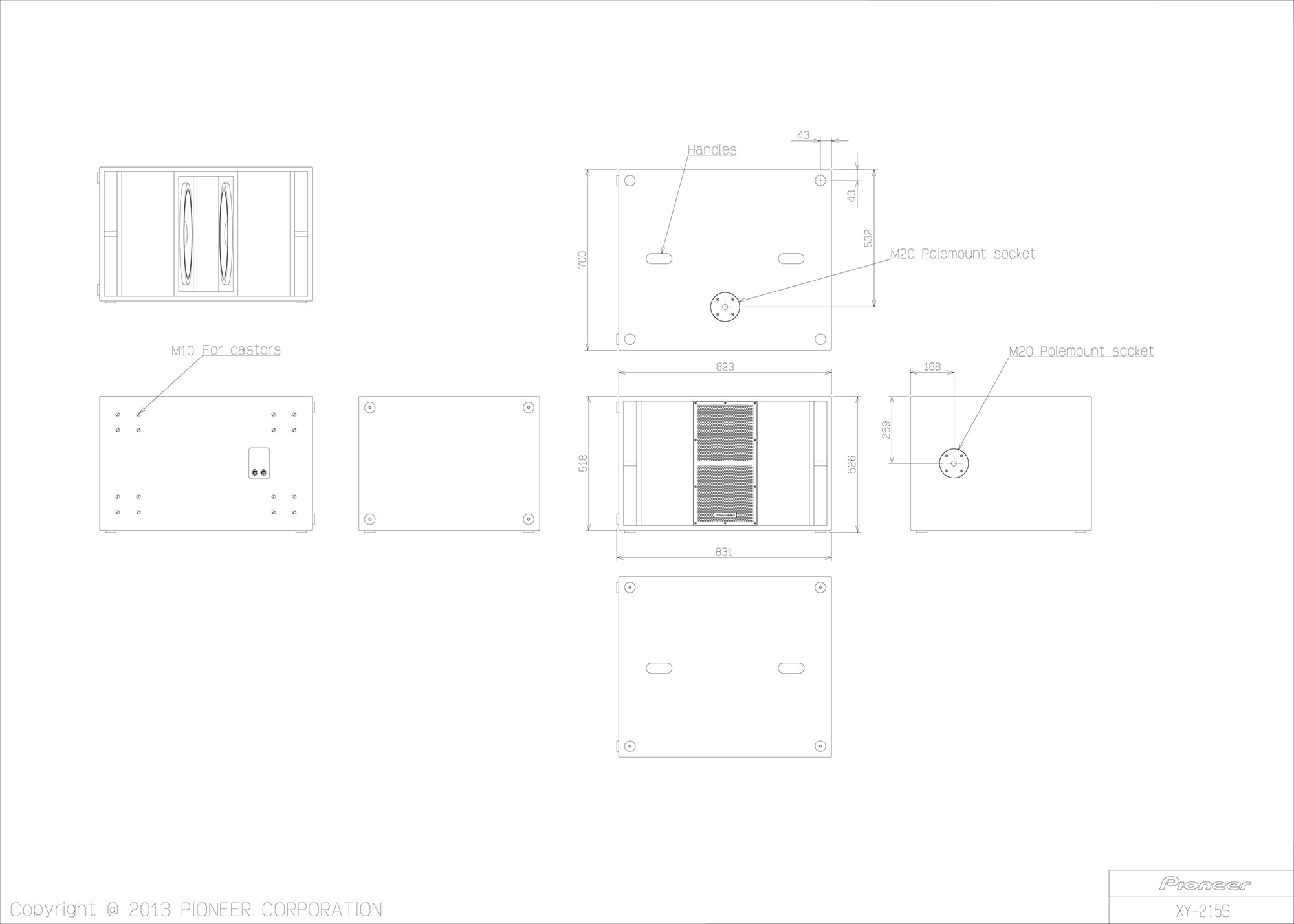

Technical drawing
Technical drawing (DXF : 4 Mbytes)
